Dome: complete

So tonight was the night to finish work on the dome. I mounted the lights inside the dome, and got everything together. There's a coupe of little bitty details, but I'm basically rocking.

I made a couple of these as mounts/diffusers for the front and rear PSIs. This one is the rear.

Here you can see the one for the front PSI. The diffuser is hot glued to the MDF ring; the blue tape is holding the PSI in place inside it.

Unfortunately (as you see here) I had accidentally put one of the ring holes right where the rear PSI is,so I had to attach the rear diffuser to the dome instead of the MDF ring. I'm using paint tape here, but that's just a temporary measure until I get some more permanent mount. Like duct tape.

It's all good, though. It came out looking nice:

Here, you can see the rear assembly. From left to right: rear PSI, rear holoprojector, rear logic display, and battery pack velcroed to the MDF ring so I can pop it off when I need to swap out the batteries.

The front assembly:  cable from rear logic display, the front logic displays, the front PSI, and front holoprojector.

Rear view:

Front view:

And here's a video of it in action:

So, that's the dome. Not sure what's going to be next. I've got the frame coming, and will be getting a set of legs before long. I may just rest until they show up, concentrating on more 3D printing, but I'm nearly there. I might also do the skins, laser cutting them at the maker space. In any case, this is a pretty big milestone considering I only started about six weeks ago. In any case, I'm having a blast.

...and there was light.

let there be more light

So this evening I sat down to do the Rear Logic Display. I figured I'd get 2 rows done, maybe. I somehow managed to get 4. I was waiting on a print of my first attempt at a 3d printed diffuser for the front and rear PSIs, so I went ahead and kept on soldering. I would have got all 5 rows, but I goofed in putting an LED in the wrong way so I had to take it out and unplug the holes.

Lessons learned:

• double-check the pins before you solder.
• If you have to remove one, use the iron to melt the solder and take it out a little at a time.
• If you have solder in a hole, put a little solder in it and get it all nice and liquid then tap it on a flat surface (I had missed the bit about adding a little extra solder when the guy at the makerspace showed me the other night)
• DO NOT hold the iron to the hole in hopes of melting it out, as you may well gunk it up and destroy the connection. I now have one LED that won't light up anymore because of this.

 Anyway. Other than that one bulb, it's all good. I tried the diffuser, and found that A) it blocks too much light, B) the inside radius is too big--I want the PSIs to fit snugly inside, and C) It's too shallow. I want it to tuck in there nicely. I'll redesign and print again tomorrow night. Fortunately, Autocad 123D is proving to be very simple to use, and even exports straight to STL. It's not perfect, but whaddya want fer nothin'?

Anyway, got home and was disconcerted to find that the lights wouldn't work. Funny thing. The chain with the rear PSI was fine. But the one with the FLDs and front PSI was kaput. It was either all-on or all-off. Taking instruction from the FAQ, I removed and reseated a few of the LED controllers, which didn't help, then reseated the Arduino Pro Mini, which did. So thank goodness for that. It's pretty impressive.. can't wait to show it off. Hopefully tomorrow.

let there be lights

So this was an interesting weekend, alternatively fustrating and productive, with lessons learned and progress made. I'm well on the way to a completed dome.

First off, as mentioned Thursday, my LED controllers and jumper wires showed up. So Friday after a long, frustrating day at work I sat down to try to program my Arduino Pro Mini with the standard Teeces sketch as found here. Now, I had originally thought to use a Pro Micro because it has the built-in USB, but it turned out that it's a little too big, with extra bits hanging over the side on both ends. Not a problem in and of itself once you adjust the pinouts in the code, but it did butt up against the screw-down terminals for the power connection, meaning it wouldn't be a snug fit in the socket. So I bit the bullet and got a mini and FTDI adapter at the local MicroCenter.

So if you haven't done one of these before, you basically go with a USB cable to a little PCB that is essentially a USB jack on one side and 5 or 6 pins on the other. Mostly 6 these days, which is good. You connect it to the pins on your Mini, and that dumps the code and all that down. Unfortunately, it would not work. I tried different computers, different serial drivers, different settings...all to no avail. I posted for help on the arduino forums, no help there. Saturday morning, I woke up, and went at it again...and I got it. My mistake? I had assumed the FTDI & Pro Mini should be both "right side up" when connected together, but the pinouts, upon closer examination, showed otherwise. I turned the Pro Mini upside down relative to the FTDI, and glory be. We have liftoff.

Once that happened, I dropped the LED controllers into their sockets and put a few test LEDs in without soldering. Bingo. Random flickerage. So after my volunteer shift I went to the makerspace and got to soldering on the Front Logic displays. There's two of them with 45 LEDs each. I'd already done the front and rear PSIs, which use nice big 5mm LEDs, but the 3mm for the rest of the displays were quite a different task. Lots of close, careful work.

A couple of times I messed up, getting solder in a hole before I could put an LED in. I learned two ways this weekend of dealing with that:

1. Use the tip of the iron to melt the solder and then give it a sharp rap on the table. This should jar it loose. Not recommended if you ahve delicate stuff soldered to the board already.
2. Poke at it with the component that needs to go in from one side, and heat it with the iron from the other. Then just ease the component in and solder it the rest of the way.

Anyway, Saturday and Sunday I did one front logic display each, and with the PSIs connected I had 4 out of 5 lights working. That's a total of 144 LEDs soldered. That just leaves the Rear Logic Display... 135 LEDs. Oy.

Funny thing. You may notice in the picture that the rear PSI is mostly yellow but has a little green. Sometimes on the PSIs, the color doesn't change all the way, just most of the way like that. I need to see if that's something people have been seeing before or what. In any case, I'm not too worried about it for now.

In the meantime, I glued in the holoprojectors to the dome. I tried using my super glue first, but it didn't last. Then I tried the glue gun today, but it was surprisingly ineffective. The owner of the makerspace said it was probably because I was using the small, low-temperature glue guns and to use one of the big high-temperature ones instead. That did the trick. At least, it has so far. So, another lesson learned. Oh, and I sanded off the paint from the bits where the glue was going, to give it something more to hang on to.

Anyway, got the word from the frame guy to send the balance. So I'll do that tomorrow if I can. Good timing, n'est-ce pas? And then tomorrow night I'll start to soldering the RLD. I'd like to have that done sometime this week so I can secure it and the battery pack (4xAA from Radio Shack) inside the dome. I still haven't added any kind of external switch; I'm waiting to see how the rest of the droid electronics pan out.  But in any case, I will have a fully done droid. Just gotta get a gear for turning it anddrop that in there, and I'm golden. Cool beans.

Dome final details and Teeces LEDs

Long day at work today, real pain in the neck. Right back to it tomorrow, but in the meantime got some good progress on the R2.

First off, I started printing more of the battery harness assemblies, got the last 3 done. Since it was open house, I brought the dome and put it up to show off. While the prints were going, I busied myself soldering the front and rear PSIs:

All nice and done. Then I glue-gunned the MDF ring inside the dome, and then added the "pie slices" and the mounting rings for the holoprojectors. Here's one with the projector mounted inside:

(Incidentally, if you've never used a glue gun before, that stuff dries fast. Like in seconds. So it's a race to dab it everywhere then position your part before the stuff hardens.)

I'm going to put some spacers on the back of the mounting rings before attaching the back mounts to them, so they have a little wiggle room for repositioning.Which pretty much leaves the lighting system.

Fortunately, when I got home, I discovered that both my LED controllers and my 5-pin jumper wires showed up. So once work is over tomorrow, I should be able to program my arduino with the R2 sketch and then do the initial smoke test.

If everything works out, I may just have the dome complete by the end of the month. Cool.

Dome coming along, holoprojectors and more

So the holoprojectors showed up yesterday, which was cool. As you can see below, each one comes in three parts, including the front and back containers. Here they are before smoothing and painting:

Gave everything a nice paint job and so it should be nce and dry by Thursday night when I hit hte maker space. Also, since my lenses came in today, I went ahead and put them in (they fit very snugly; don't need glue or anything). In the meantime, I went ahead and glued down the dome and the blue bits going all the way around. Here's what it looks lie now, with me holding the holoprojectors in (I haven't glued them in yet as I wanted to give the paint a little more time. Learned that lesson the hard way).

As you can see, it's getting very close. Going to see about the top spokes tomorrow night, and if not, will just say to hell with them and leave them as-is. Picked up nuts and wingnuts for attaching the dome and ring to the rockler bearing as well. Then in go the blue "pie slices" up top, the holoprojectors will get glued in, and then it will be a case of finishing up Teeces. And that will be the dome.

Actually, the Teeces stuff is coming along well. I spent last night de-flanging the flanged LEDs that came in the mail, and I've got them in little baggies in by project box, ready for soldering tomorrow night. Now if only the LED controllers and 5-pin jumper cables would show the heck up...oh, well. I've got a few nights of soldering before I need to worry too much about that.

Another paint & prep day

Well, it's MLK day, so a lot of my stuff is in postal limbo. No worries. I did a little work on the dome, first boring out the holes on the MDF ring a little so I could fit it more accurately to the dome ring (I'm not one to pitch products, generally, but I gotta admit that el cheapo file set I got a while back ahs been paying for itself like crazy on this project). I may just glue them down, actually, in the end. But right now I'm just using the bolts that come up through the rockler into the dome ring and up into the MDF rings. I need to get some nuts and wingnuts to do the proper spacing, but no rush.

After that, I formally decommissioned the last sad little plastic carton of egg nog in the fridge (protip: egg nog should not go "clunk") and cut a couple of covers for the front and rear PSIs:

(actually the Royal Engineers of Naboo were very big on old milk bottles and scotch tape.)

Anyhow, after that I broke out the XTC-3D and laid it to the front and rear coin returns, as well as the front and rear logic displays. After they dried, I sanded them down and gave 'em a does of paint:

I swear, I through a lot of Rustoleum, but when it comes to metal-look paint, Valspar's silver beats the crap out of everything.

Anyway, with any luck the holoprojectors will show up tomorrow. Maybe some bits from China, the other LEDs at the very least. SO I'll be able to get those all nice and prepped, and maybe have them ready in time for Thursday night. If not, then that will be an ideal opportunity to take care of them. What the hey.

One down, eleven to go.

This marks one month since I started on this project, and this weekend has been a good one.At the end of Friday, I made sure the blue ring and the lower dome ring were all fitting together.

Then Saturday it was time to go over the Rockler bearing and replace the ball bearings. I more or less went with the video here to do this, and was done in about an hour. Here you see the bearing disassembled:

Here's my dome ring catching the bearings as I let them out.

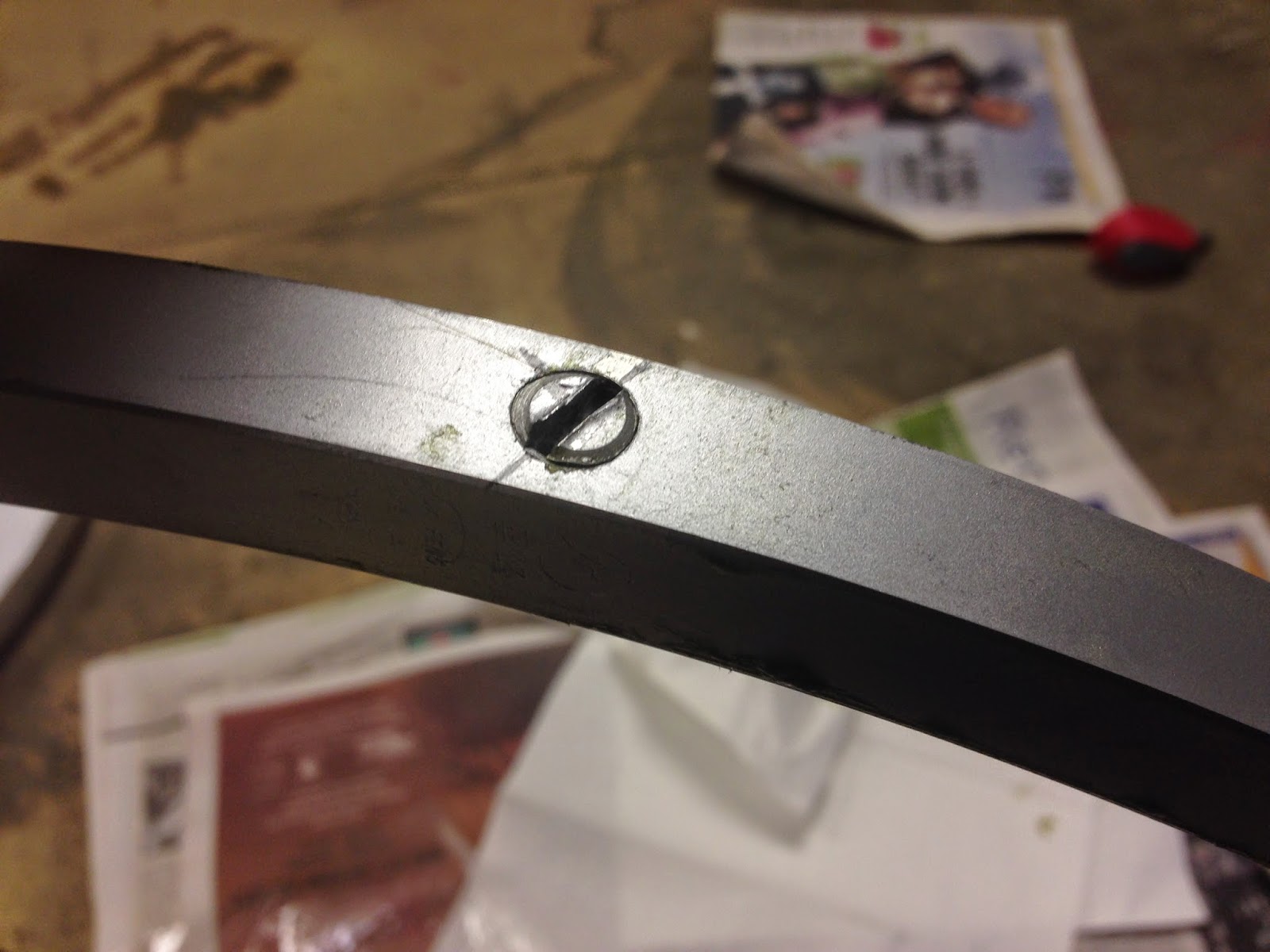

Per the video, I made sure to mark the starting point of the plug screw so I could line it up exactly when I was done:

After that, I needed to cut the dome ring itself. The owner of the makerspace showed me a neat Dremel tool (shown below) where I made a mark at the center, drilled a hole, and used it as a guide to cut a perfect circle. Came out nice.

Sunday was quiet, mostly drilling holes between the dome ring (note the hole) and the MDF supports, as well as the bearing itself (I should have drilled before I replaced the bearing; I'll probably empty it out here shortly just to get rid of any stray metal filings). I basically followed this tutorial for the drilling, even if the holes didn't match up I'm pretty close to the mark.

Here you can see the inside with the bearing mounted inside the dome ring. I'll need to get some nuts for spacers so the ring will actually turn, but that's no big. And when my holoprojectors come and I verify the fit, I'll be able to glue the MDF ring into the inside of the dome and secure everything, and still have the ability to get in there and do maintenance.

So. With only one month down, I've got the dome nearly done: just need to get the logic display frames cleaned up and painted, finish building the light systems, cut out some milk jugs for the diffusers on the logic displays, and glue on all the outside bits. Basically, I'm waiting on parts and then a flurry of soldering (I'm as far as I can get on that right now without a primary smoke test). I've got a frame on the way in February, legs in March, all kinds of body bits printed and ready, and I'm even starting to glance a little at the intricacies of getting this sucker moving. This is coming along fast. And it is fun.

More domity, and a side order of solder

Realized I had forgotten to mount the blue ring around the dome before securing the radar eye, so this evening when I get home I went ahead & took care of that. Ordered my holo projectors and related items, and they should be along next week. This ol' feller is really taking shape.

That's better.

Anyway, it was open house night at the makerspace. I gotta make sure to bring the dome next week so the visitors can see it as Dave (the head honcho) was telling folks about it. Pretty pleased with how it's coming out. I kinda wound up giving impromptu discussions on 3D printing and arduinos to visitors, and did manage to get some soldering in on the front logic displays while waiting on a print of the front coin return (wound up being extra-long, so I just went home. I'll pick it up tomorrow).

Got home today to find that the first batch of stuff from China made it. 3 sets of flangeless 3mm LEDs, all ready to go. They even threw in a bunch of resistors which I don't need but what the hey, nice to have.

Anyhow, tomorrow I'm meant to get my arduino, so I'll be able to take care of the pinouts and dump the program to it. Heck, if the LED controllers show up, I may even be able to smoke test the rear logic display. Would be nice.

Radar eye complete!

OK, so I spent a little time this evening finalizing the fit of the inner and outer domes, and filing down some of the bits. I'm going to wait until I get my holoprojectors (which I paid for tonight) and verify their fit before I glue everything down, but I did go ahead and drill the holes for the attachment of the radar eye.

I can't remember if I mentioned it before, but a while back I got a 3 liter pop bottle on the suggestion of an article in the Astromech wiki and used it for the lens. First I painted it. I tried the auto tinting black first, just to see how it looked, but in the end went with a singe coat of flat black, seen here:

After that, I bolted in the radar eye using the pilot holes (btw, there's a rather neat trick to getting the holes lined up properly here. Long story short, you trace the shape of the radar eye onto paper, cut it out, punch the holes through the paper and use that for your guide), screwing them in about halfway, enough to hold it still while I slid the "lens" in and positioned it. Then tightened it down and hey presto. Here's how it looks inside:

And here it is outside:

Gotta admit, I'm pretty pleased.

More dome bits and getting a start on Teeces soldering

Good night tonight. First off, I saw that Monkyman on astromech had posted a couple new models, including one for the Rear Logic Display frame, which I was just in the process of ordering. So I wound up printing it instead. Came out nice. Then I broke out my PC board for the RLD and started in to soldering as much stuff as I could without the LEDs which are still on a slow boat from China. It's been a while since I wielded a soldering iron, but I gotta say I'm pleased with the result:

Will be nice once the chips and LEDs show up so I can actually fire this sucker up and test it out. In the meantime, I can do the other boards as much as I can while I wait. Also, while I was soldering, I also printed out the RLD frame, which came out quite nice.

So off home with my new part and out with the file on the inner dome until I had a nice fit.

Still ordering the holoprojectors from Monkyman, so hopefully they'll show up soon and I can finish with the holes and secure the dome for good. Which reminds me, gotta do that radar eye lens...

Teeces and related things

Not a lot done today. I wound up ordering the last bits and pieces I will need for the Teeces lighting system. Unfortunately, several bits are on various slow boats from China, but hopefully by the end of the month I'll have everything. In the meantime, I've got enough to at least start soldering.

Interesting note: according to my part spreadsheet, I have expended $125 in Teeces parts including the PC Boards, resisters, IC sockets, LED controllers, the Arduino and of course the LEDs themselves. This sounds like a lot, but if I go on to Astromech, I can buy a kit pre-assembled... for $275.

Yeah.

Anyway, not my first soldering job and almost certainly not my last. So no worries there.

In the meantime, I did some more work ont he front logic frames. I printed them out, but the top one needed to be tapered a bit because of the dome shape. So I stopped by the makerspace real quick to make use of their belt sander, and had it fitting in no time. Check it out:

As you can see, they fit nicely in the inner dome, and will flush up with the blue frame just fine. Obviously I'm going to have to smooth them out a bit and paint them before mounting the actual LED grids behind them, but that's no big. Tempting though it is to leave 'em green ;)

Anyway. I need to get things measured up and nailed down properly as far as meshing the inner and outer domes. When I do that, I can secure the radar eye and use that to secure them. I should be getting static holoprojectors before too long, with any luck, as well as a rear logic display (he hasn't released those 3D models to the public yet, alas). Anyway, at this rate, I reckon I'll be done with the dome sometime in February and off and running on the body. We shall see...

Busy weekend

Well, got a lot done this weekend. FIrst, cut the trim on the inner dome and the dome ring. The styrene on the dome ring is really thick, and cutting that sucker took forever.

Then, I made a quick Michael's run and picked up 3 of their 18" MDF floral craft rings. Here you can see a test fit inside the inner dome. Snug as a bug in a rug.

Unfortunately I have some bowing going on here. Going o have to see what I can do about that:

In the meantime, painted the lower ring to match the rest of the dome. I didn't bother with the center because it won't be seen anyway, and I'm probably going to cut a bit out of it. Though not the whole thing; I want a "perch" for batteries and such.

Friday, the Teeces boards showed up. As you can see, they're bare boards, but marked up with what components need to go where. Actually, I got most of the components that I ordered from Mouser on Saturday, but am still waiting on the LEDs to show up. Kinda have to do them first.

In the meantime, I glued two of the MDFs together. Gorilla glue didn't do the job, but some 3M 45 spray adhesive put 'em together solid as a rock in no time.

Saturday afternoon at the makerspace, I did a test placement of the dome components, and took reference photos all the way around. I gotta say. This is gonna look so good when it's done...

(Yeah, I know, I missed a couple bits that need painting.)

Meantime, I did some prints. On the left in white, a battery clip (as seen on those little boxes attached to R2's feet). The green things are the front logic display frames, and the thing in black is actually my own attempt at modelling a part. It's a logic bezel for the frames: they have matrices of 3mm LEDs, you see, and this is used to "frame" them. There are two slightly different designs--I went with this one ebcause it had the most complete information online. I'll have to do the other one as well before too long. It was an interesting exercise in modelling, learning Blender on the fly.

Here it is coming out of the printer. A little rough, but workable.

Here I am,  working the holes open with a T7 and then a T9 screwdriver bit. I'll give it more work when the LEDs arrive.

Meantime, I've got holes to drill in the inner shell. Using the outer shell Saturday, I drew out the holes that needed to be cut and Sunday broke out the ol' drill. Step one: make a dotted line:

Step two, cut along the dotted line:

Step 3: file the Dickens out of the hole and test it to make sure it will look all right (oh, and per advice online, I sanded down the inner dome and worked it a bit so I'm still getting a bit of bowing, but not nearly as much as before. I can live with it).

End result: 8 holes. Now I just need to get my Holoprojectors and the rear logic display frame (the long slot at the bottom) and I can make final adjustments to permanently attach the inner and outer domes.

So yeah, not a bad weekend at all. Gotta order some goodies for the dome, then attach the radar eye, work up the lens... and hopefully by that point it'll be time to start assembling the lighting system.
